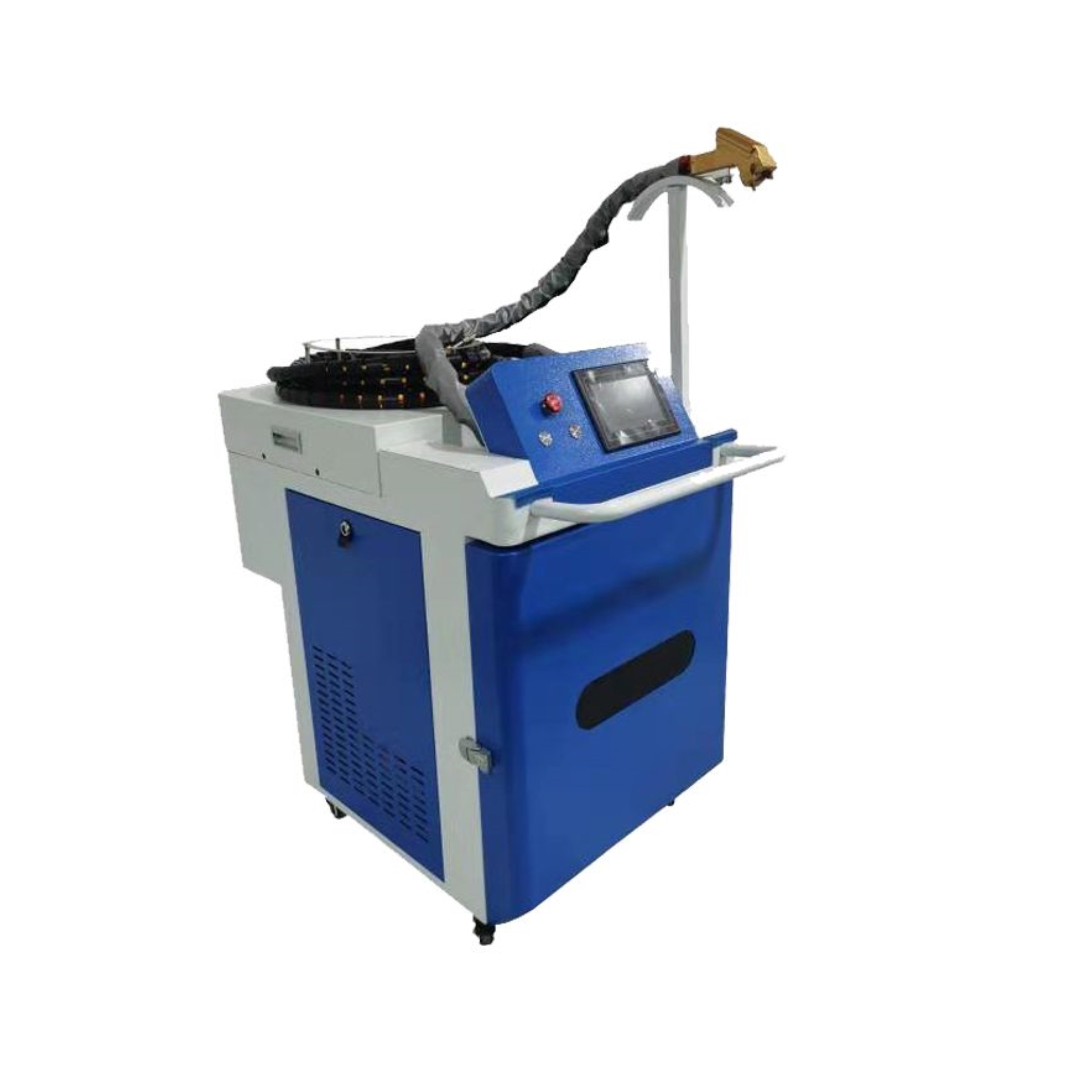

Laser Cleaning Machine Laser Rust Removal Machine
Laser Cleaning Machine / Hispeed
Product Features:
-Autofocus
-Fit crank surface cleaning
-High surface cleanliness
Application Area:
1. Metal or workpiece surface coating removal
2. Fast removal rust, oxide and dry paint
3. Remove resin, grease, dust, dirt, production residue
4. Metal surface roughening treatment
5. Dry paint appear before weldin.. moreg or bonding, removal rust, oil, residue glue after welding,
6. Mold cleaning, such as tire molds, electronic molds, food molds
7. Removal of dirty oil after production and processing of precision parts
8. Quick cleaning of nuclear power components during maintenance
9. Aerospace weapons, oxide treatment during ship production or maintenance, rust removal10. Cultural relics cleaning, exterior cleaning of buildings
Application Information:
Power: 20Watt 100Watt 1000Watt
Operating Temperature: 0°C-45°C
Frequency: ≤1200Hz
Resolution: 12μRad.
Repeated Accuracy: 8μRad.
Linearity : 99.9%
Small Step Response Time: ≤0.3ms
Maximum Scanning Angle : ±15°
Average Operating Current: 0.2 A
Ratio Shift: <40PPM/°C
Zero Drift: <15μRad./°C
Long Time Drift (Keep continue working 8 hours): 0.5mRad.
Peak Current: 15A
Storage Temperature: -10 to +60°C
Input Aperture: 8mm
Speed Of Light Displacement: 12.4mm
Weight: 45g
Size: 380*70*100mm
Weight: 1.0±0.1(kg)
Wiring Length /m: 3.0( Can be customized according to demand)
