50~140 BAR High Pressure Coolant Systems VFD/ Fixed Freq.

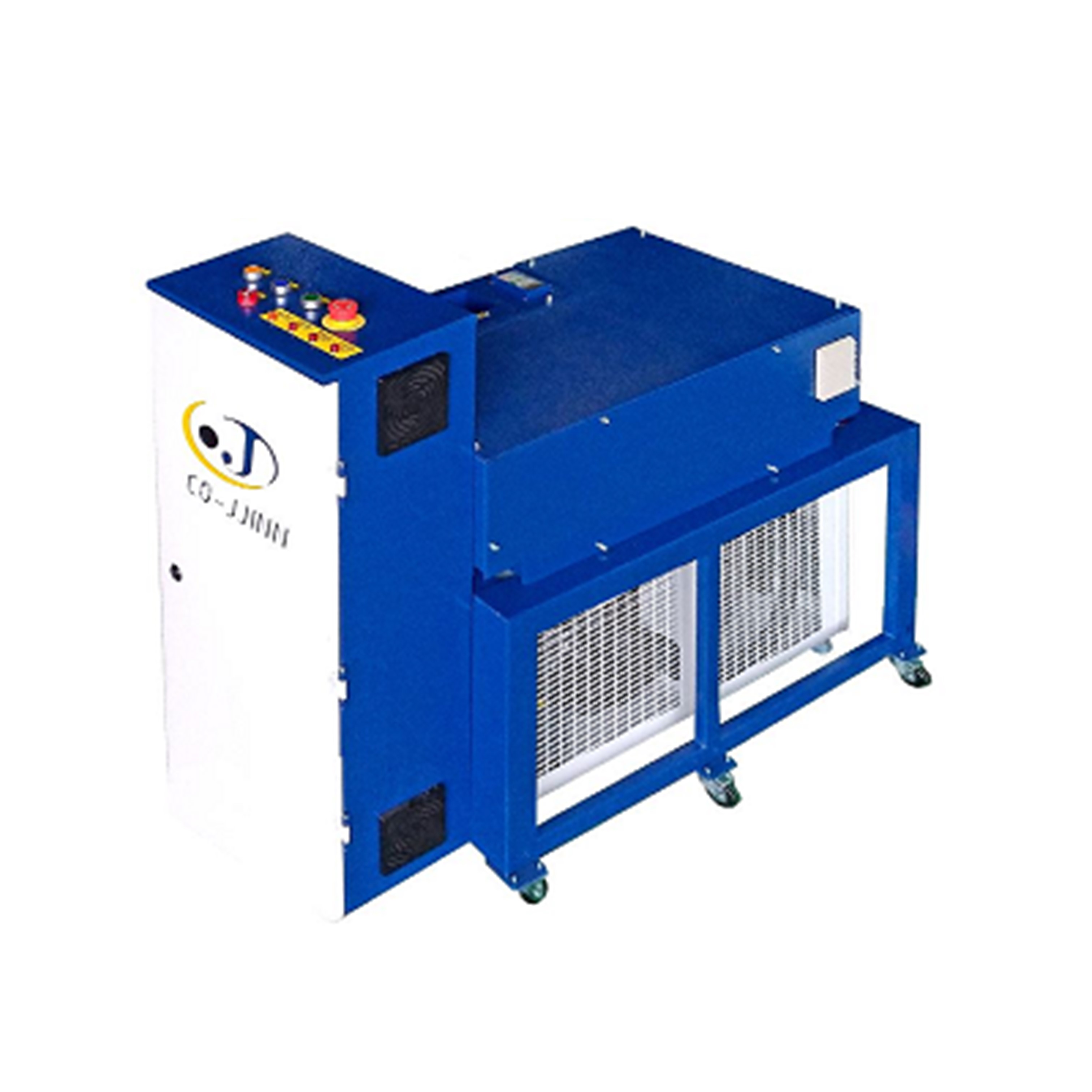

High Pressure Coolant System and Chiller Compound Machine / CO-Jjinn

Product Features:

>High Pressure and cooling combination
>Solve string chip
>Increase productivity
>Extend tool life
>Space-saving

Applicable Machines:
-Turning Lathe Machine
-Turn Mill Machine
-Double Column Milling Machine
-Deep Hole Drilling Machine

Technical Information:

Model:
1. .. moreTV050BTW-C1-2-1.5
2. TV070BTW-C1-2-1.5
3. TV140BTW-C1-2-1.5

Max Pressure:50~140 BAR
Oil Ratio: 100%
Internal Coolant Diameter: Outlet dia. beneath 2mm preferred at 50~140 bar
Voltage: 220V/380V/415V
Frequency /HZ: 50Hz-60HzFilter mesh: 5µm ; 10 µm
Water inlet: 1”
Water outlet: 3/8”
Dimension (WXLXH): 61X158X112 (cm)
